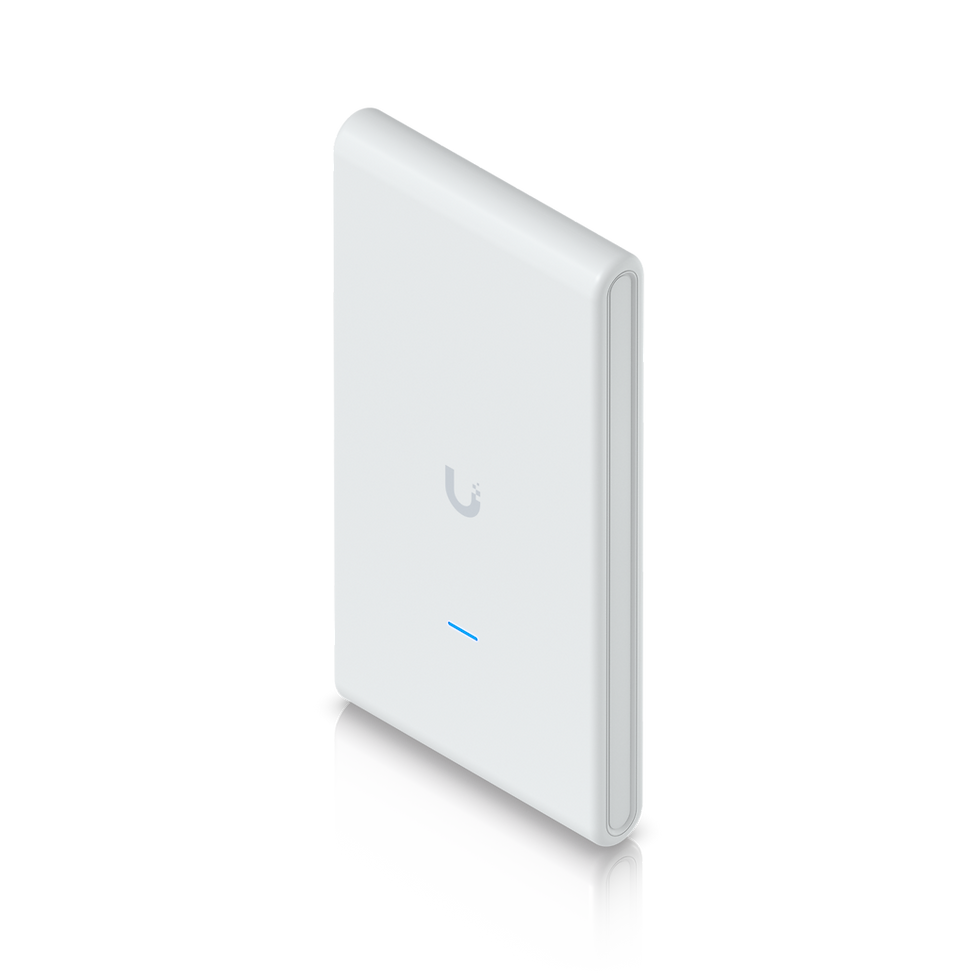

UniFi U6 Mesh Pro | U6-Mesh-Pro

Mechanical

Dimensions

343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")

Weight

819 g (1.8 lb)

Enclosure material

UV-stabilized polycarbonate

Mount material

Aluminum alloy, steel

Pole mount diameter

1~2.5" on pipe outer diameter

Weatherproofing

IPX6

Hardware

Networking interface

(2) GbE RJ45 ports

Management interface

Ethernet WiFi

Power method

PoE

Power supply

UniFi PoE switch 48V, 0.5A PoE adapter (Included)

Supported voltage range

42.5—57V DC

Max. power consumption

9W

Max. TX power 2.4 GHz 5 GHz 6 GHz

22 dBm 27 dBm –

MIMO 2.4 GHz 5 GHz 6 GHz

2 x 2 (DL/UL MU MIMO) 2 x 2 (DL/UL MU-MIMO) –

Max. data rate 2.4 GHz 5 GHz 6 GHz

573.5 Mbps (BW40) 2.4 Gbps (BW160) –

Antenna gain 2.4 GHz 5 GHz 6 GHz

8 dBi 8 dBi –

LEDs

White/blue

Button

Factory reset

Mounting

Wall, pole (Included)

Ambient operating temperature

-30 to 60° C (-22 to 140° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi standards

802.11a/b/g/n/ac/ax (WiFi 6)

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

350+

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)

802.11ac

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

Application Requirements

UniFi Network

Version 8.1.127 and later
